Hi all, I’m new to the forum so please be gentle.
I brought a 2006 Abbey Vogue 416GTS this week but there are no manuals with it. Is there anywhere I can get a PDF so I can work out what fuses do what and how everything else works?
Many thanks in advance.
Nick

Jun 16, 2020
5,476
2,434
11,935
  • Like
Reactions: Moodygit416
Jun 3, 2025
5
1
15
Sep 23, 2023
1,046
401
1,435

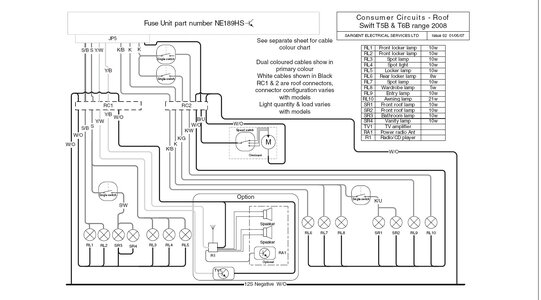

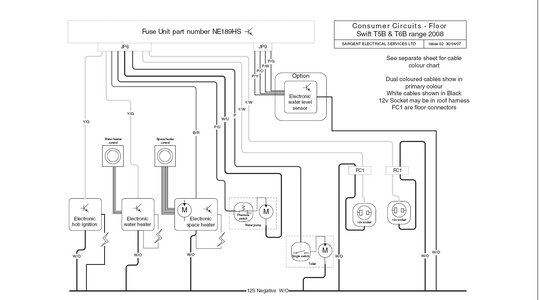

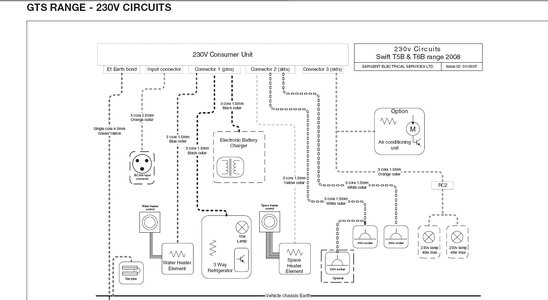

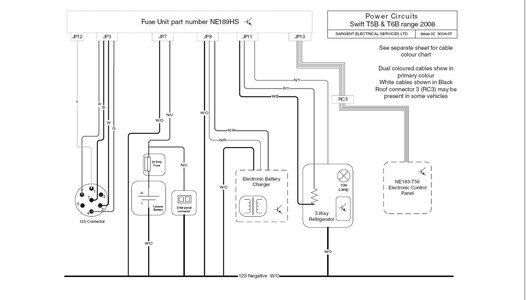

MDYG,it wouldn't come to me as a surprise if a wiring diagram from a Swift wasn't similar or identical as yours from the same year,as Abbey caravans were made by Swift from the early 90,s prior to being made by Cosalt (as my GTS was)..if you need anything else just ask, friendly lot on here.

  • Like
Reactions: Moodygit416
