Over loaded axel!

Jun 16, 2020
4,791
1,924
6,935
Visit site
We read on here from from time to time o out caravan suspension that collapses and damages the wheel arch and owners being told it is their fault for overloading.

I have just found the info about Alko caravan axles.

Perhaps I am missing something .

LINK

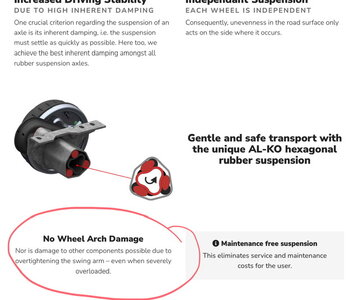

And the relevant part being.



John

  • Like
Reactions: ProfJohnL
Nov 11, 2009
20,647
6,401
50,935
Visit site
We read on here from from time to time o out caravan suspension that collapses and damages the wheel arch and owners being told it is their fault for overloading.

I have just found the info about Alko caravan axles.

Perhaps I am missing something .

LINK


And the relevant part being.


View attachment 6614

John
The no wheel arch damage assumes that the rubber components act as designed and maintain conformity. My axle relaxed badly on the offside and reduced loaded clearance to around 12 mm. The rubber had partly “ extruded” from its tube so was clearly not available to resist movement. Given the state of roads I wasn’t prepared to continue to use the caravan and purchased a complete axle assembly.

Nov 11, 2009
20,647
6,401
50,935
Visit site
Ouch! at least it right now 👌
I sold it in 2021 so the new owner befitted. I also put dampers on it whilst they aren't as effective as car dampers, but at the price anything that would protect it a bit more was worth it. A recent thread described axle failure on a new Swift caravan with an MTPLM of 1300kg, but an axle rated at 1500kg, and initial discussions with the Dealer led straight to "you must have overloaded it"

Mar 14, 2005
9,793
689
30,935
lutzschelisch.wix.com
The link suggests that there is something in the design which limits suspension movement, but to prevent wheel arch damage that must be effective before the tyre can contact the wheel arch. I have the impression that in the past that was not always the case.

Nov 6, 2005
7,451
2,124
25,935
Visit site
The link suggests that there is something in the design which limits suspension movement, but to prevent wheel arch damage that must be effective before the tyre can contact the wheel arch. I have the impression that in the past that was not always the case.
I'm aware of one occurence, reported on a caravan forum, where the owner identified a faulty suspension because the tyre had worn a hole in the top of the wheel arch - so it certainly wasn't always the case.

Nov 11, 2009
20,647
6,401
50,935
Visit site
I wonder if fitting shock absorbers would prevent the issue?
When university of bath tested caravan suspension they concluded that the Alko dampers did not give much benefit to the Alko suspension. As I mentioned in an above post I fitted them to my new axle on the basis that at less than £100 “every little helps”. But to be honest I couldn’t feel any difference compared to the old degraded axle with no dampers, and the new axle with dampers.

Jul 18, 2017
12,507
3,516
32,935
Visit site
When university of bath tested caravan suspension they concluded that the Alko dampers did not give much benefit to the Alko suspension. As I mentioned in an above post I fitted them to my new axle on the basis that at less than £100 “every little helps”. But to be honest I couldn’t feel any difference compared to the old degraded axle with no dampers, and the new axle with dampers.
Our our 2011 Lunar TI it made a massive difference to towing as no more open drawers and things shaking about. No idea if it helped the suspension.

Mar 14, 2005
9,793
689
30,935
lutzschelisch.wix.com
I'm aware of one occurence, reported on a caravan forum, where the owner identified a faulty suspension because the tyre had worn a hole in the top of the wheel arch - so it certainly wasn't always the case.

In that case the caravan manufacturer probably didn't check with AlKo first, how much suspension travel was available before reaching the bump stop in the axle.

I wonder if fitting shock absorbers would prevent the issue?

Possibly, but to rely on shock absorbers as a bump stop is poor practice.

When university of bath tested caravan suspension they concluded that the Alko dampers did not give much benefit to the Alko suspension. As I mentioned in an above post I fitted them to my new axle on the basis that at less than £100 “every little helps”. But to be honest I couldn’t feel any difference compared to the old degraded axle with no dampers, and the new axle with dampers.

In that case why is the weight ratio limit 30% in Germany when no shock absorbers are fitted? They surely didn't pull that figure out of a sack.

  • Like
Reactions: toad a caravan
Nov 11, 2009
20,647
6,401
50,935
Visit site
In that case the caravan manufacturer probably didn't check with AlKo first, how much suspension travel was available before reaching the bump stop in the axle.



Possibly, but to rely on shock absorbers as a bump stop is poor practice.



In that case why is the weight ratio limit 30% in Germany when no shock absorbers are fitted? They surely didn't pull that figure out of a sack.
Best you direct that question to the University of Bath who worked icw Bailey. Prof probably has the reference available,. But it has been mentioned a number of time before on the Forum surprised you haven't picked it up before. Perhaps the 30% came from the same source as the 85%....anon! (TIC)

Jul 18, 2017
12,507
3,516
32,935
Visit site
Best you direct that question to the University of Bath who worked icw Bailey. Prof probably has the reference available,. But it has been mentioned a number of time before on the Forum surprised you haven't picked it up before. Perhaps the 30% came from the same source as the 85%....anon! (TIC)
Is that the same institution that came up with the 85% theory sometime in the early 20th century that some take as being legislation?

Mar 14, 2005
9,793
689
30,935
lutzschelisch.wix.com
Is that the same institution that came up with the 85% theory sometime in the early 20th century that some take as being legislation?
As the 30% figure is from a German source and the 85% from the UK it’s unlikely that the origins are the same. Besides, the 30% is a legal limit whereas 85% only a recommendation. One would assume that tests were carried out before the 30% limit was set because further percentage differentiations are made depending on technical spec.

Mar 14, 2005
17,804
3,202
50,935
Visit site
Best you direct that question to the University of Bath who worked icw Bailey. Prof probably has the reference available,. But it has been mentioned a number of time before on the Forum surprised you haven't picked it up before. Perhaps the 30% came from the same source as the 85%....anon! (TIC)
And
Is that the same institution that came up with the 85% theory sometime in the early 20th century that some take as being legislation?

From the research I have done, no university has ever been involved with the development of the UK caravan industries tow ratio advice. In fact I have been unable to discover any formal or evidence based process used to inform the creation of the Industry advice.

  • Like
Reactions: Buckman
Jul 18, 2017
12,507
3,516
32,935
Visit site
And


From the research I have done, no university has ever been involved with the development of the UK caravan industries tow ratio advice. In fact I have been unable to discover any formal or evidence based process used to inform the creation of the Industry advice.
Makes you winder where the CC got the 85% guideline if it was not from a university?

Jan 20, 2023
845
720
1,135
Visit site
Despite numerous threads seeking the source of the 85% recommendation no one has ever been able to pinpoint where and when it came from. Lost in the depths of time.
I suspect (but have zero evidence) that it came from "self-appointed expert opinions". All done with the best of intentions no doubt but as you say, the origins now confined to the mysteries of the world.........

  • Like
Reactions: ProfJohnL
Nov 11, 2009
20,647
6,401
50,935
Visit site
In that case the caravan manufacturer probably didn't check with AlKo first, how much suspension travel was available before reaching the bump stop in the axle.



Possibly, but to rely on shock absorbers as a bump stop is poor practice.



In that case why is the weight ratio limit 30% in Germany when no shock absorbers are fitted? They surely didn't pull that figure out of a sack.
You might be interested in this University of Bath 2013 MPhil project thesis concluding that the Alko dampers have significantly less effectiveness than would normally be provided by dampers for example. Laboratory testing combined with theory was followed by a series of tests at the Millbrook proving ground using a Bailey Valencia caravan. Overall the Alko dampers were considered nit to be particularly effective. The caravan failed to complete the tests as it chassis fractured.

There’s also an earlier 1994 PhD study that might be of interest.




PS even the ubiquitous Alko spare wheel carrier is criticised.

Last edited:
Jun 20, 2005
17,536
3,656
50,935
Visit site
You might be interested in this University of Bath 2013 MPhil project thesis concluding that the Alko dampers have significantly less effectiveness than would normally be provided by dampers in cars for example. Laboratory testing combined with theory was followed by a series of tests at the Millbrook proving ground using a Bailey Valencia caravan. Overall the Alko dampers were considered nit to be particularly effective. The caravan failed to complete the tests as it chassis fractured.

There’s also an earlier 1994 PhD study that might be of interest.



Did I quote the wrong study?

Mar 14, 2005
9,793
689
30,935
lutzschelisch.wix.com
You might be interested in this University of Bath 2013 MPhil project thesis concluding that the Alko dampers have significantly less effectiveness than would normally be provided by dampers for example. Laboratory testing combined with theory was followed by a series of tests at the Millbrook proving ground using a Bailey Valencia caravan. Overall the Alko dampers were considered nit to be particularly effective. The caravan failed to complete the tests as it chassis fractured.

There’s also an earlier 1994 PhD study that might be of interest.




PS even the ubiquitous Alko spare wheel carrier is criticised.

I've just had a quick look at those two findings and my initial response without going into detail of reading over 200 pages would be that the first one concentrated on the effect that dampers may or may not have on overall chassis performance and durability, and the second more on lateral stiffness. That dampers won't affect lateral stiffness is very much to be expected. However, neither of the two reports seem to go into much detail on the effect of dampers on vehicle handling, in particular in something like the "Elk test" and that's where I would have expected results that confirm benefits for fitting dampers, ultimately leading to the significant legal weight ratio restriction in Germany if they are not fitted.
