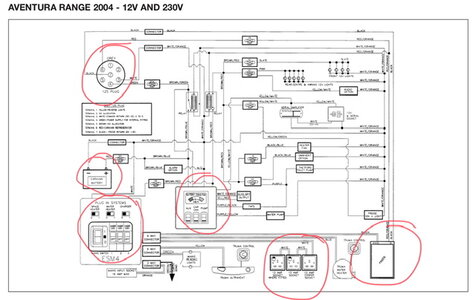

Not always, the diagram in question shows most other items pictorially. So I would expect it to show a 12 volt fuse box in a similar way. But it clearly shows them individually. Which might also be why Gregster cannot find them.Wiring diagrams always show individual fuses, they don't show locations of anything only the schematic layout.

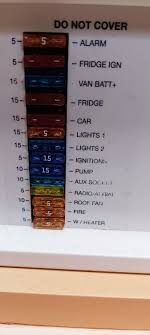

I have a feeling the OPs is one of the older models which had individual in line fuses . Maybe the Abbey Owners Club could help?https://www.google.co.uk/url?sa=t&r...usg=AOvVaw2xgAj0y44cOPmvcYt34-eH&opi=89978449Not always, the diagram in question shows most other items pictorially. So I would expect it to show a 12 volt fuse box in a similar way. But it clearly shows them individually. Which might also be why Gregster cannot find them.
View attachment 5813
John
