Sprite Major Water System

[JohnD87]

Hi,
I have recently joined the touring caravan hype, after completing breaks with the family in Trigano trailer tents, it was time to make the final leap to a caravan, with it more accessories beyond my current knowledge.

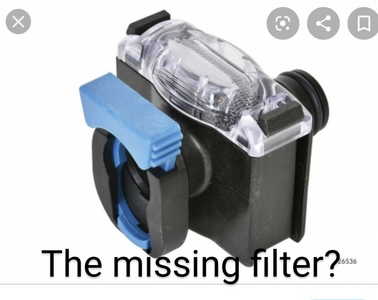

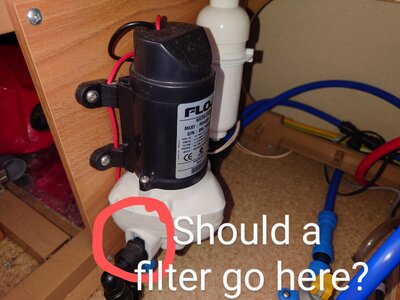

I have an issue with the water system and feel after much research, that the filter is missing from the left hand pipe before it reaches the water pump, I have checked on the outside as I have noticed some are next to where the water inlet is.

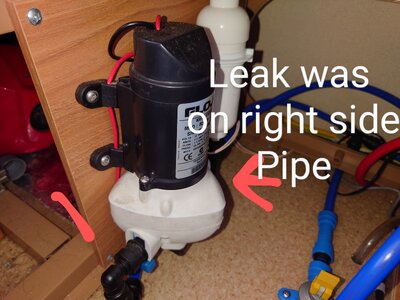

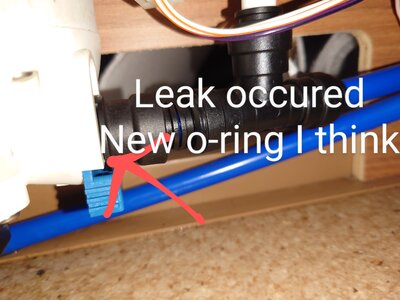

Also I have experienced a leak on the right hand side of the unit (I think a new rubber o-ring will sort this)

But if I'm being a spam and filter is actually in an alternate place, please let me know.



[Buckman]

No filter shoudl not affect the systme as many people remove the filter anyway. However it woudl help if we knew the year, make and model of your caravan.



[otherclive]

My Sprite 2012 had the Flojet pump but no filter was fitted from new. When the pump failed some years later I fitted a new Flojet and the warranty required the filter to be fitted. It was more a fine strainer than a filter.



[otherclive]

No filter shoudl not affect the systme as many people remove the filter anyway. However it woudl help if we knew the year, make and model of your caravan.

The filter/strainer is to protect the Flojet pump from particulate matter, it’s not the sort of filter fitted to “purify” drinking water which as you say is often better removed.
